DIY: 2.0T FSI Timing Belt Replacement for GTI/A3/Jetta

Zach L

VR junkie
Location
Austin, TX
Figured I'd throw together a little how-to for us with transverse mounted engines to let peeps know more of what's in store to get the job done. Having the engine mounted sideways makes it a little more difficult. If I had to do it again I'd start on Saturday instead of Sunday to not be so rushed. If you don't strip a bolt plan on it taking about 8 hours the first time ...maybe 4-5 hours second time around.

ECS Tuning and DBC Performance offer relatively complete timing belt kits online. I'd get a kit that includes the timing belt, tensioner, both idlers, A/C belt, and coolant. If the kit does not come with the 6 crank pulley bolts and 4 engine mount bolts, you may want add those to your order. They are one time use stretch bolts.

I stole a few pics from the Audizine DIY since the front of their engines is more viewable. More pics later. PM me if you notice any mistakes or want to make a suggest to improve this DIY.

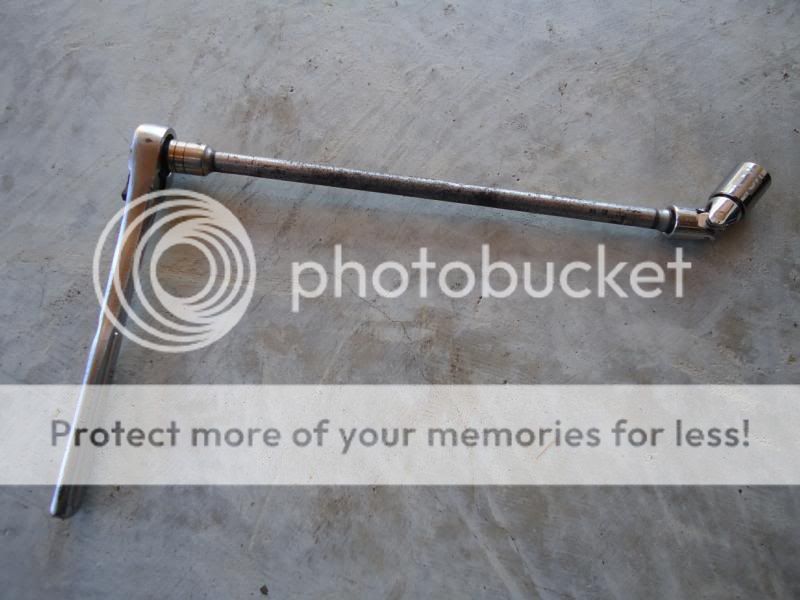

Tools Needed:
Basic socket set
Breaker Bar
T20, T30 Torx bits
6mm, 8mm Allen bits
Pliers
Flathead Screwdriver
5/8" wrench
Torque wrench
19mm 12pt socket

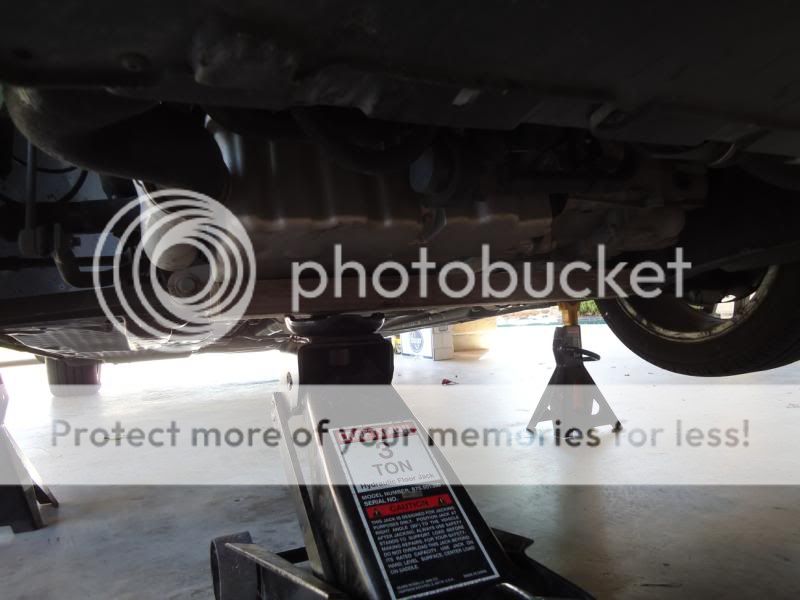

1) Before jacking up the car make sure to loosen the passenger wheel lug bolts.
2) Remove passenger wheel.
3) Unplug MAF sensor and remove factory air box/engine cover.
4) Remove factory "noise pipe" if equipped (quick release at each end, 1 8mm screw, 1 T30 Torx screw).


5) Disconnect washer tank from bracket and push to side (1 10mm screw).

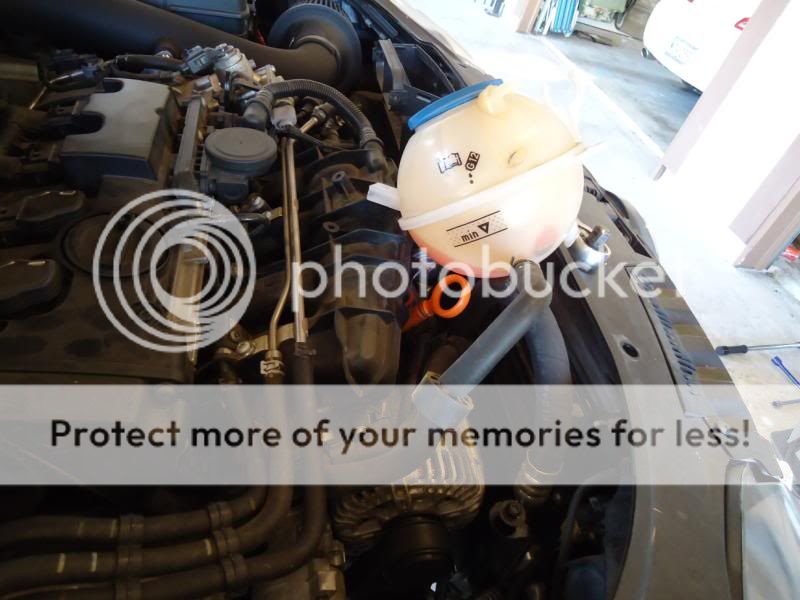

6) Disconnect coolant reservoir and push to side. Unplug connector, disconnect small upper hose near cap, and remove screws holding rear of tank (2 T20 Torx screws).


7) Remove black washer bottle support bracket (2 13mm bolts)


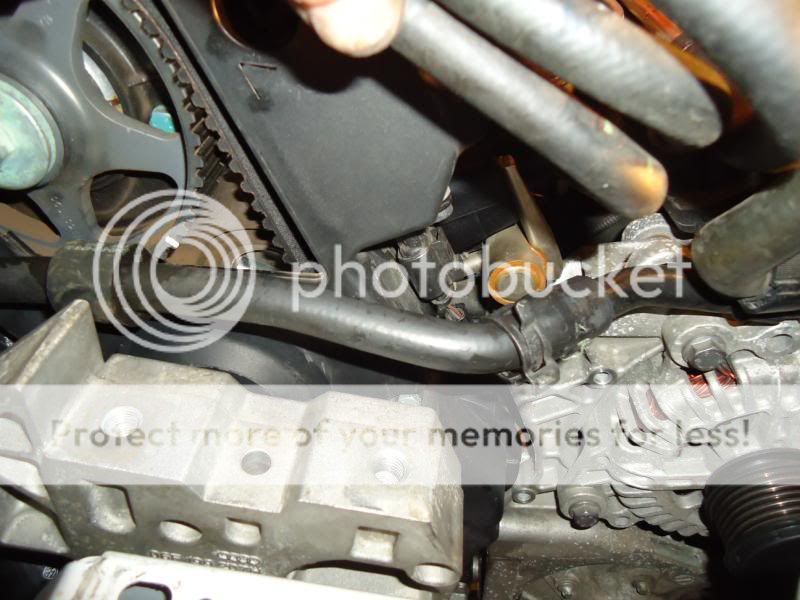

8) Disconnect coolant hose and push to rear of engine bay. Hose passes in front of belt cover.


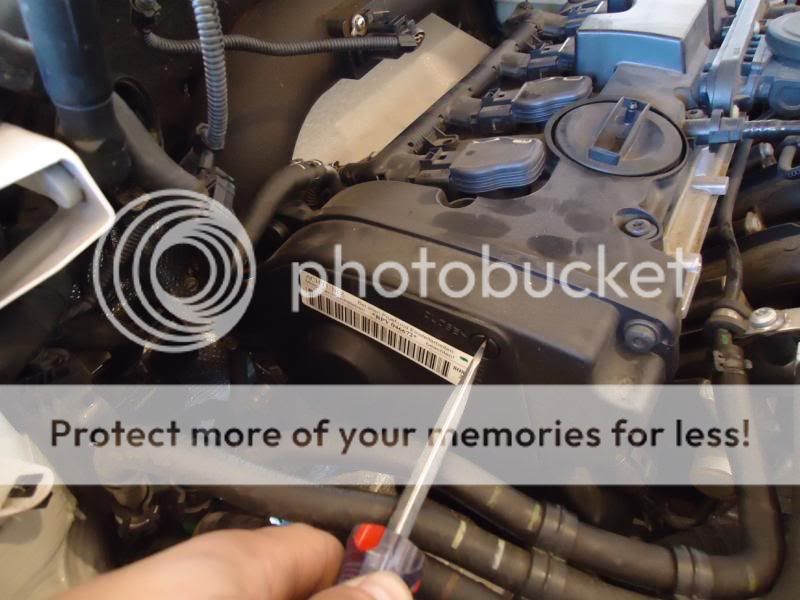

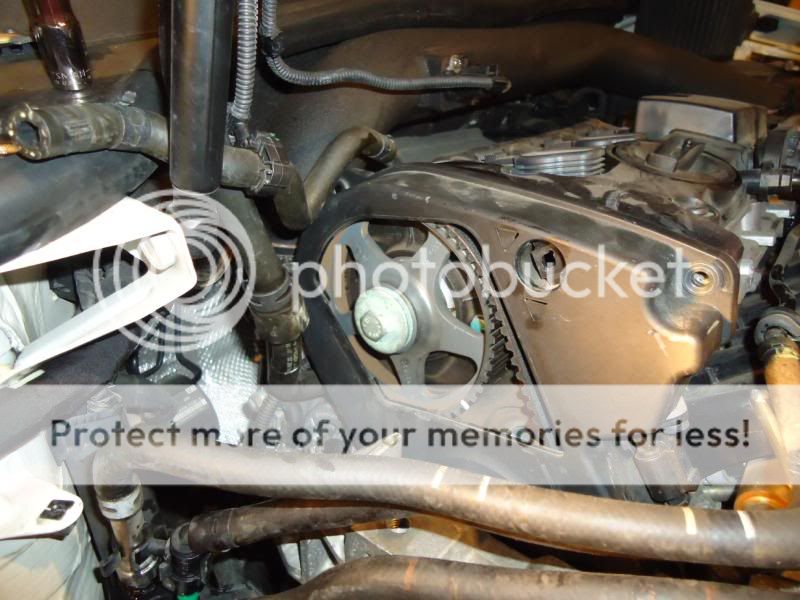

9) Unlock and remove cam sprocket cover using flathead screwdriver.




10) Remove under engine plastic dust guard (8 T20 Torx screws)

11) Remove passenger side front lower wheel well liner (7 T20 Torx screws).


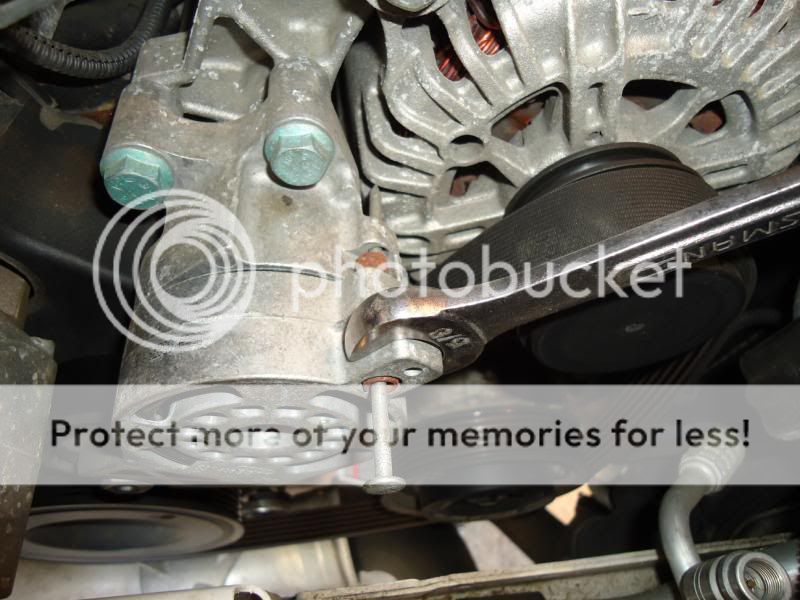

12) Disengage ribbed belt tensioner using open-ended wrench and nail. Remove ribbed belt.

13) Remove ribbed belt tensioner (3 13mm bolts)

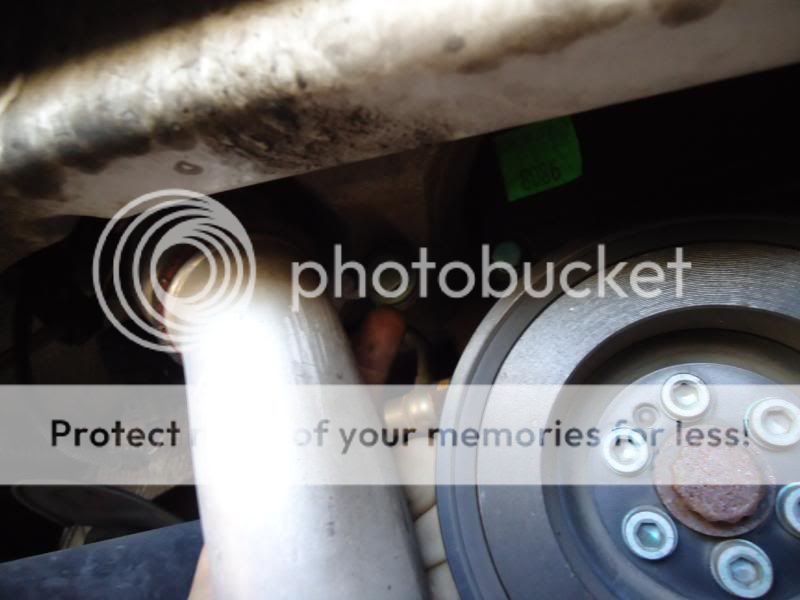

14) Remove crankshaft pulley (6 6mm Allen bolts). Have one person hold crankshaft center bolt stationary while another loosens the hex bolts. Be VERY careful not to strip or you may have to drill one out (Don't ask how I know). These are stretch bolts and should be replaced with new bolts upon reassembly.




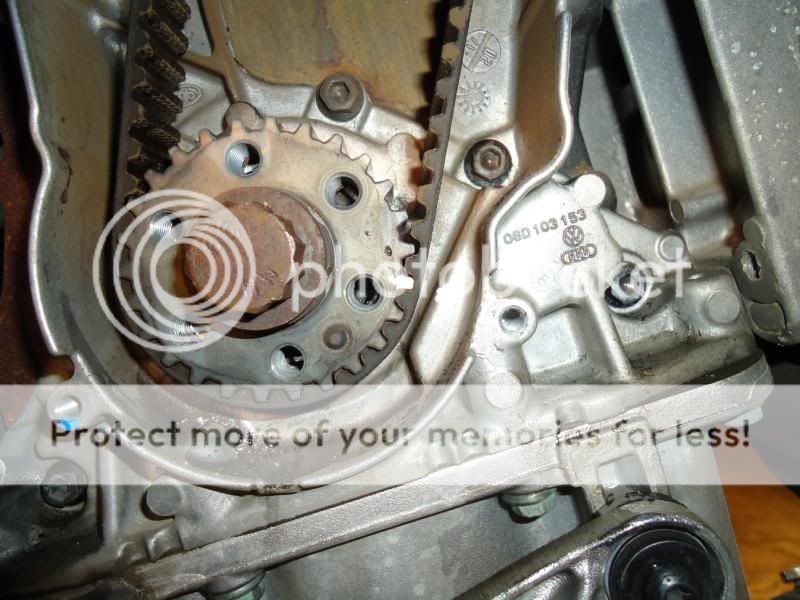

15) Remove black lower timing belt guard (4 10mm bolts)


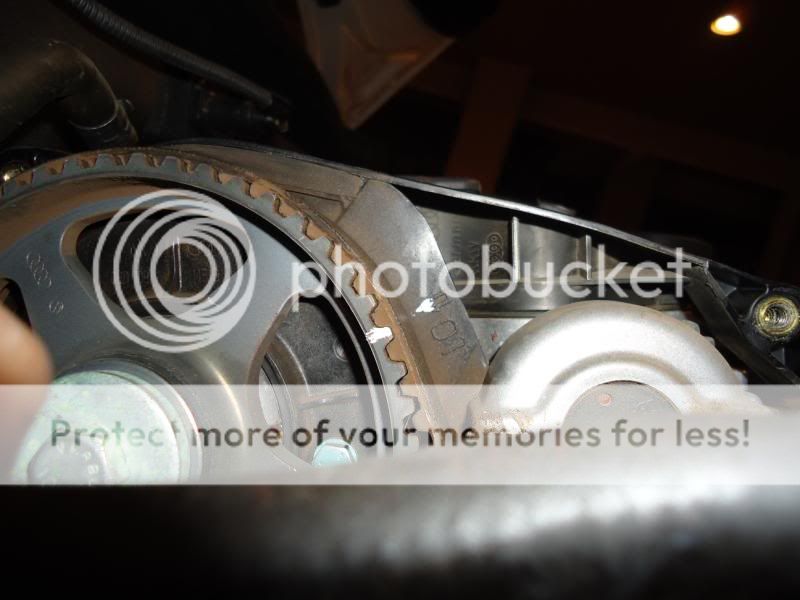

17) Turning clockwise, bring camshaft gear to marking for TDC cylinder 1 by turning crankshaft center bolt (1 19mm 12pt). Marking on camshaft gear must align with arrow on timing belt guard.


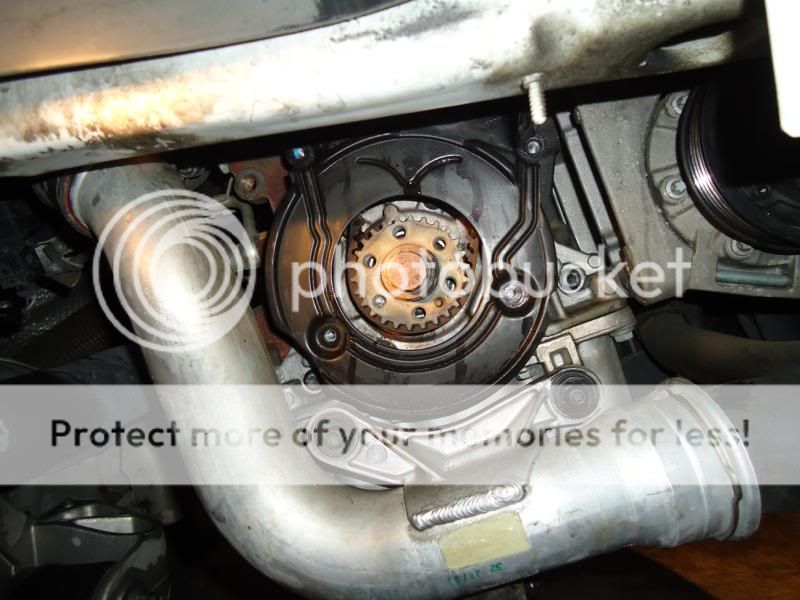

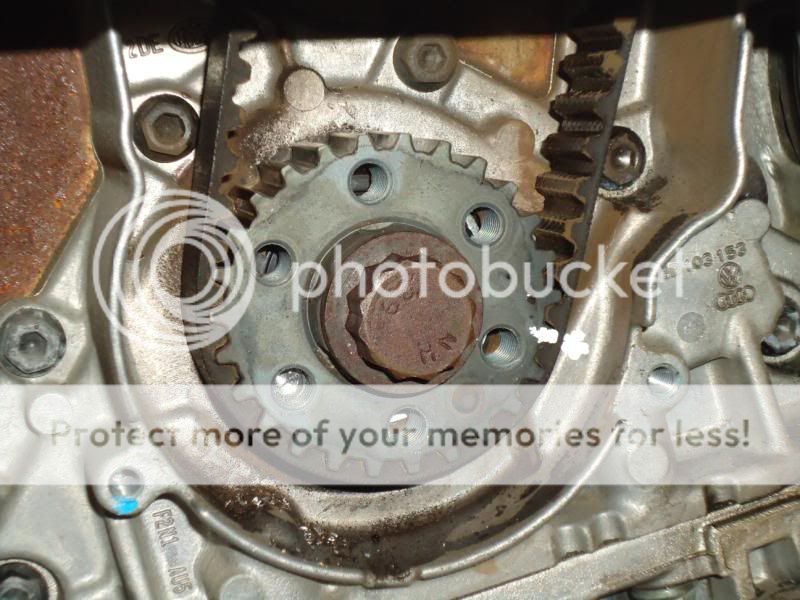

18) Mark bottom sprocket with paint or white out. In case the sprocket is bumped or accidentally spins you will need to have it marked.


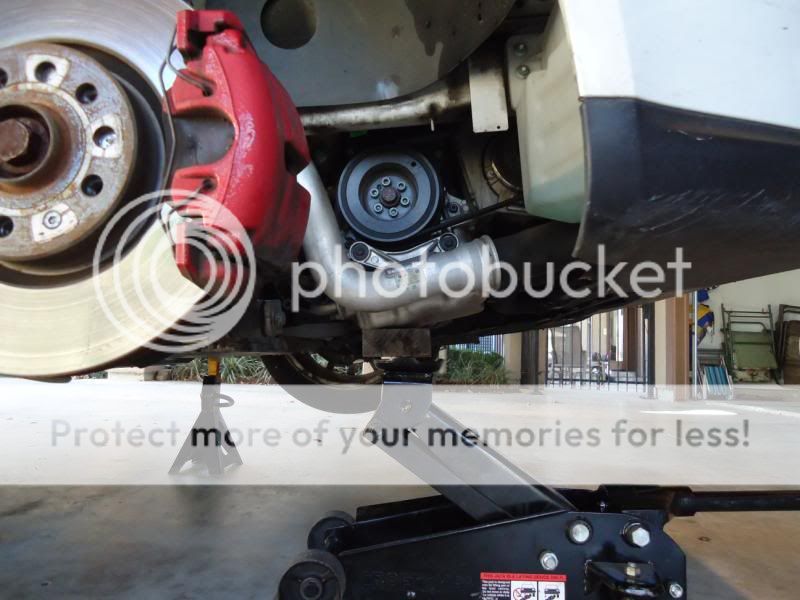

19) Support passenger side of engine using jack or engine lift.


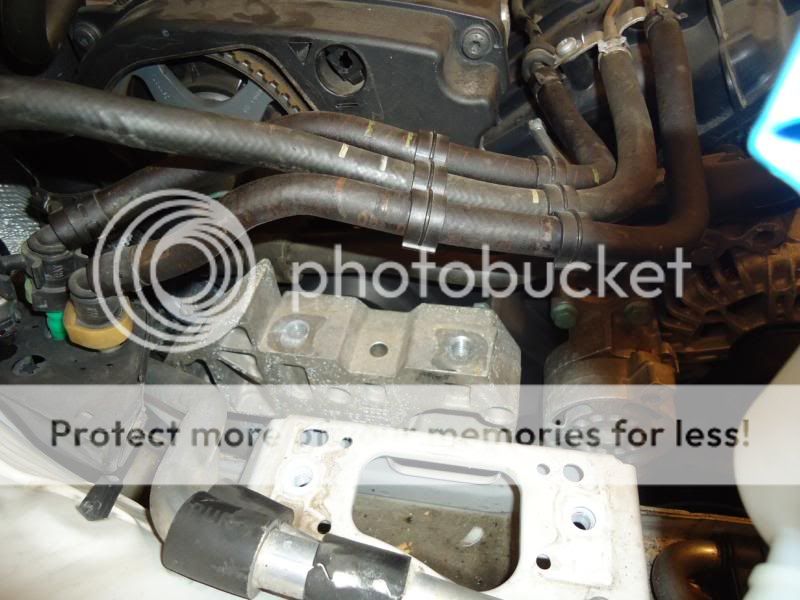

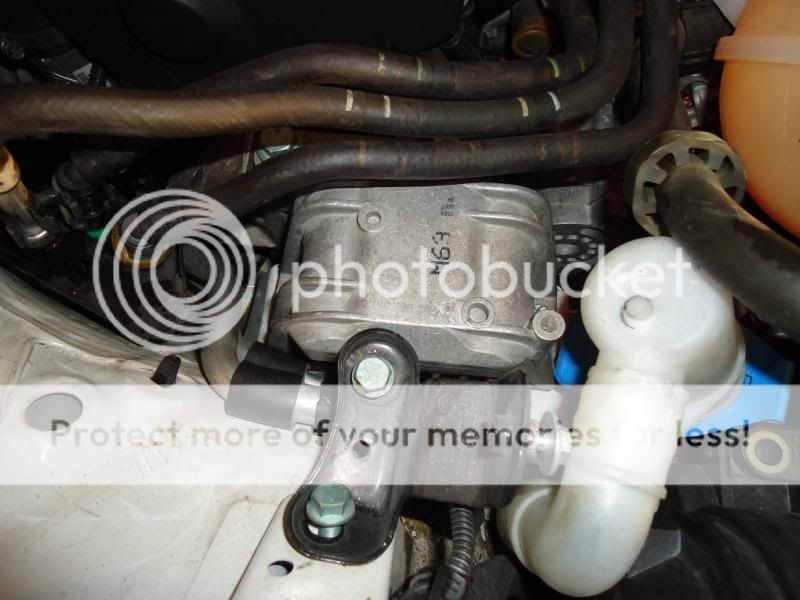

20) Remove side engine mount. Remove the larger bolts first (2 18mm) which connect the mount to the engine followed by removing the smaller bolts (2 16mm) that connect the mount to the car. All 4 of the mount bolts are stretch bolts and should be replaced with new bolts upon reassembly. This may or may not apply if you are using aftermarket mounts and hardware.


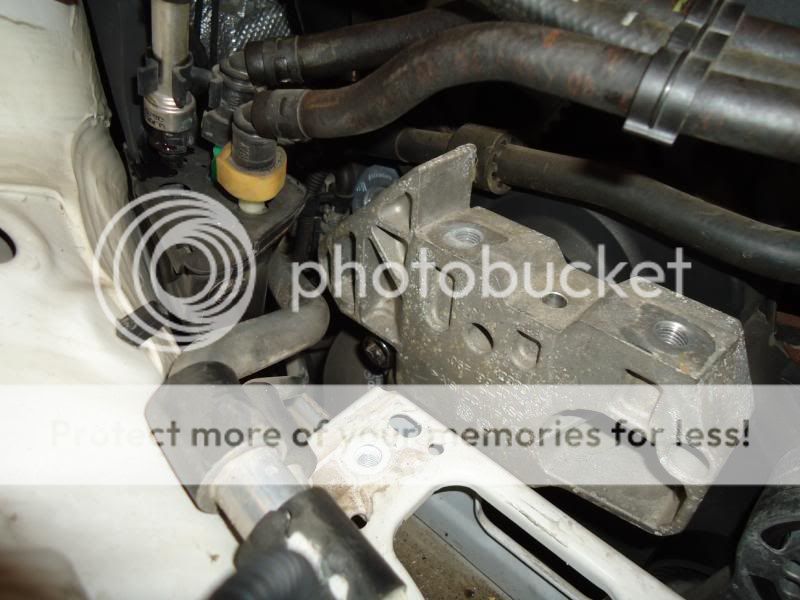

21) Remove lower bolt from engine bracket (16mm bolt).




22) Raise engine to gain access to upper engine bracket bolts.


23) Remove upper engine bracket bolts (2 16mm bolts).


24) Work engine bracket up and out of engine bay. Contrary to what the Bentley manual says, it is not necessary to disconnect the lower engine mount, axles, and downpipe to get the bracket out. Fuel lines do not need to be disconnected either. Bracket will squeeze between fuel lines and plastic timing belt cover.
25) Remove plastic timing belt cover (7 total; 2 T30 Torx, 5 10mm bolts).


26) Loosen and remove timing belt tensioner (1 13mm nut, 1 8mm Allen). Loosen main 13mm nut then use rotate 8mm Allen bit counter-clockwise to loosen tensioner.


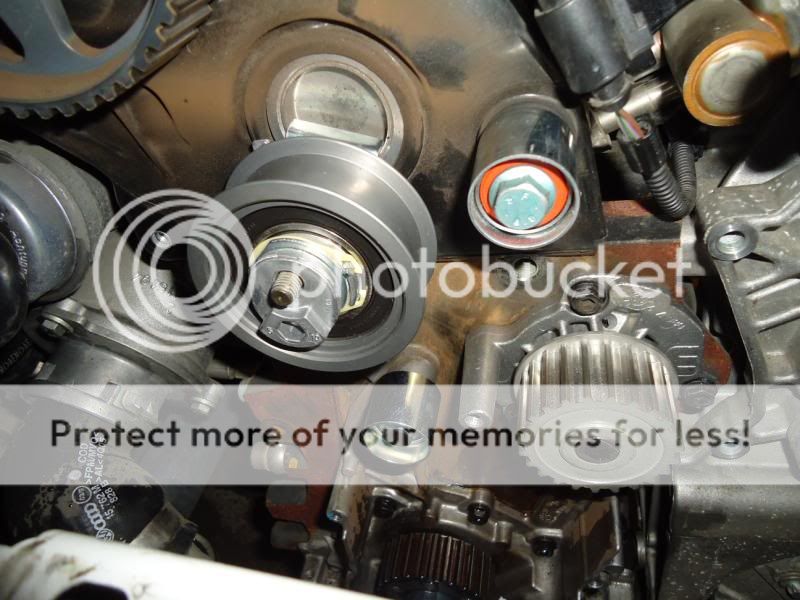

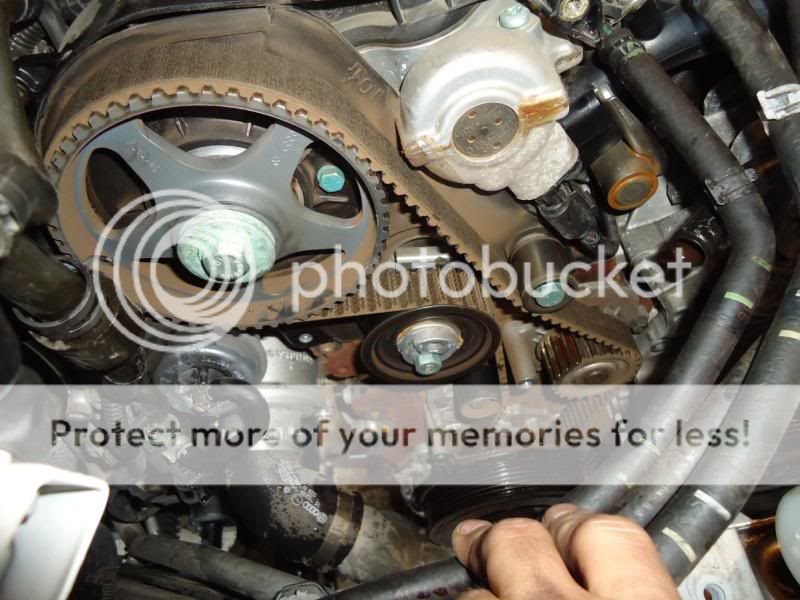

27) Remove timing belt tensioner, timing belt, both idlers

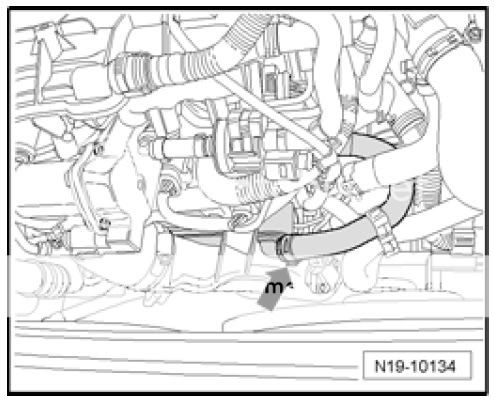

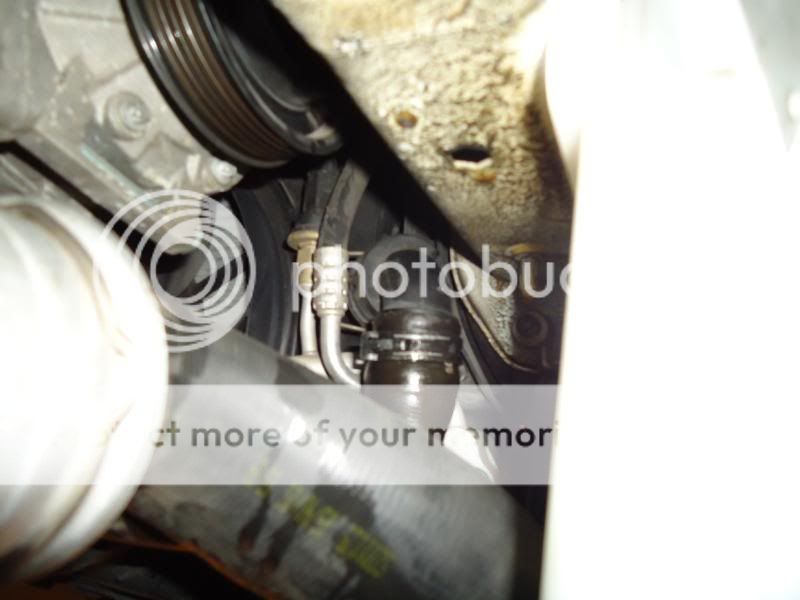

28) If replacing water pump, do so now. Drain coolant from lower passenger radiator hose and from coolant hose going to oil cooler. The oil cooler hose is directly behind the larger radiator fan. Remove and replace water pump (3 10mm bolts). Water pump bolts are 15nm.




29) Replace idlers. Upper idler is 25nm and lower idler is 35nm
30) Replace timing belt tensioner and timing belt. See my "***TIPS TO PUTTING ON BELT" below at bottom of DIY.


31) Hand tighten tensioner 13mm nut. Using 8mm Allen rotate clockwise until tab aligns with notch. Torque 13mm nut to 25nm.


32) The 4 engine mount bolts, 6 crank pulley bolts, and 2 washer bracket bolts are stretch bolts that should be replaced with new bolts every time. The 3 engine bracket bolts do not need to be replaced. 6mm crank pulley bolts are 10nm + ¼ turn. The 3 16mm engine bracket bolts are 45nm. The 2 18mm mount bolts are 60nm + ¼ turn. The 2 16mm mount bolts are 40nm + ¼ turn. 13mm washer bracket bolts are 20nm + ¼ turn. Wheel lug bolts are 110nm.


***TIPS TO PUTTING ON BELT:

The belt should always be put on the crankshaft gear last. Start by putting it on the tensioner, looping it over the top of the cam gear, and down past the waterpump and idlers, leaving the crankshaft gear for last.

The cam gear is at the top of the loop. The crankshaft gear is at the bottom of the loop. The tensioner is on the left side of the loop, so when the tensioner finally is tightened later on, it will take most of the slack from the left side of the loop, not the right. Before you can tighten the tensioner you must have the belt fully on the engine. When putting the belt on the gears, take all the slack out of the right side of the loop. The right side of the loop (the side with the water pump) needs to be extremely tight with all excess slack on the left side of the loop (the side with the tensioner).

If for some reason you do this and the belt is still a tooth off after 2 rotations, it's because the right side of the loop was not tight enough when putting it on the crankshaft gear. If you're having trouble pulling the belt down far enough on the right side to set it in the proper tooth, there is a way you can kind of "cheat" to get it on the proper tooth. To do this, pull down on the right side of the loop just as you did the first time (making sure the cam gear doesn't rotate when doing this, obviously). When doing this, you can turn the crankshaft gear counter-clockwise just a little. You are essentially bringing the tooth on the gear to the correct notch on the belt. Do not turn the crankshaft gear more than a tooth in the counter-clockwise direction as the cam gear is stationary up at the top of the loop. When you set the belt on the right tooth, turn the crankshaft back to where is was. At this point the belt should be tight on the right side, with the slack on the left side. Set the belt tensioner and rotate the crank 2 times to check again you have it on the correct tooth.

Last edited:

ecoterragaia

Ready to race!
Location
Richmond, VA
Great write-up, thanks man!! And thank you for noting the unnecessary steps that the Bentley calls for, very helpful. Will be doing this in a few weeks after putting a few more miles on the current timing belt.


Lsmaclea

Passed Driver's Ed
Location
Allston MA
This is AWESOME! Great work.

I did the timing belt on my sisters car (2.0 AVH) last winter. I'd recommend reading that DIY to anyone who's taking on a timnig belt for the first time. This DIY has a very solid method of ensuring that you get the new belt on, in the right position, the first time.

http://forums.vwvortex.com/showthread.php?2271429-DIY-Timing-Belt-And-Coolant-Pump-Replacement-on-2.0-AEG!-Pics-Inside!

I only have one real comment to make: When you put the new timing belt on, the marks you made need to line up perfect. However, when you rotate the crank, the marks on the belt will not necessarily line up again after two full (720 degrees) revolutions. The cog on the crank, and cam, are very different diameters. OP, if there's some detail on the 2.0T that make this different lemme know.

Rotating the motor twice after putting the new belt on, is really just to double check that nothing crazy happened. Basically, while rotating it, you'll feel the valves and pistons touching, and stop. However, the starter motor wouldn't stop.......The only way to verify timing is correct (other than being 150% sure you put the new belt on correctly) is by checking some other mark on the flywheel. There's info on that on other threads.


Again, awesome that the OP wrote this up. I've got about a year before I need to do mine, but I was seriously hoping someone else would do a write up before I just dove in with the Bentley.


Zach L

VR junkie
Location
Austin, TX
This is AWESOME! Great work.

I did the timing belt on my sisters car (2.0 AVH) last winter. I'd recommend reading that DIY to anyone who's taking on a timnig belt for the first time. This DIY has a very solid method of ensuring that you get the new belt on, in the right position, the first time.

http://forums.vwvortex.com/showthread.php?2271429-DIY-Timing-Belt-And-Coolant-Pump-Replacement-on-2.0-AEG!-Pics-Inside!

I only have one real comment to make: When you put the new timing belt on, the marks you made need to line up perfect. However, when you rotate the crank, the marks on the belt will not necessarily line up again after two full (720 degrees) revolutions. The cog on the crank, and cam, are very different diameters. OP, if there's some detail on the 2.0T that make this different lemme know.

Rotating the motor twice after putting the new belt on, is really just to double check that nothing crazy happened. Basically, while rotating it, you'll feel the valves and pistons touching, and stop. However, the starter motor wouldn't stop.......The only way to verify timing is correct (other than being 150% sure you put the new belt on correctly) is by checking some other mark on the flywheel. There's info on that on other threads.


Again, awesome that the OP wrote this up. I've got about a year before I need to do mine, but I was seriously hoping someone else would do a write up before I just dove in with the Bentley.
Yes, both gears are different sizes and turning the crank 2 full rotations will show you if you're a tooth off. Like I said in my original post, one tooth off is possible because of the slack in the belt when putting it on the gears, but before the tensioner takes the slack out. Understand the following to set the belt on the car properly:

The belt should always be put on the crankshaft gear last. Start by putting it on the tensioner, looping it over the top of the cam gear, and down past the waterpump and idlers, leaving the crankshaft gear for last.

The cam gear is at the top of the loop. The crankshaft gear is at the bottom of the loop. The tensioner is on the left side of the loop, so when the tensioner finally is tightened later on, it will take most of the slack from the left side of the loop, not the right. Before you can tighten the tensioner you must have the belt fully on the engine. When putting the belt on the gears, take all the slack out of the right side of the loop. The right side of the loop (the side with the water pump) needs to be extremely tight with all excess slack on the left side of the loop (the side with the tensioner).

If for some reason you do this and the belt is still a tooth off after 2 rotations, it's because the right side of the loop was not tight enough when putting it on the crankshaft gear. If you're having trouble pulling the belt down far enough on the right side to set it in the proper tooth, there is a way you can kind of "cheat" to get it on the proper tooth. To do this, pull down on the right side of the loop just as you did the first time (making sure the cam gear doesn't rotate when doing this, obviously). When doing this, you can turn the crankshaft gear counter-clockwise just a little. You are essentially bringing the tooth on the gear to the correct notch on the belt. Do not turn the crankshaft gear more than a tooth in the counter-clockwise direction as the cam gear is stationary up at the top of the loop. When you set the belt on the right tooth, turn the crankshaft back to where is was. At this point the belt should be tight on the right side, with the slack on the left side. Set the belt tensioner and rotate the crank 2 times to check again you have it on the correct tooth.

BTW, added these paragraphs to the original post. Needed to be covered more extensively than done originally.

Last edited:

clockwise33

New York Giants Fanatic
Location
NJ
Have you ever done the belt on a 2.0T with the inspection-windowless, two piece timing belt cover? I've been getting a noise from the cam gear area and I'm thinking that it might be making contact with the cover, as I've seen happen on the Vortex. I can't seem to get the damn upper cover off, I'm thinking the coolant line might have to come off.


Zach L

VR junkie
Location
Austin, TX
Have you ever done the belt on a 2.0T with the inspection-windowless, two piece timing belt cover? I've been getting a noise from the cam gear area and I'm thinking that it might be making contact with the cover, as I've seen happen on the Vortex. I can't seem to get the damn upper cover off, I'm thinking the coolant line might have to come off.
Yeah the coolant line that runs from the back of the engine to the front presses up against the cover. There have been a few on this site that have complained about rubbing noises, but I don't think it's worth taking everything off.

There's actually two different belt covers. One has a single piece cover and the other has a 2 piece cover. If you have a North American GTI, or any BPY engine code, you'll have the single piece cover. Removing it will necessitate the removal of the engine mount and engine bracket. Unless the sound is absolutely irritating, I'd probably wait until I was doing the timing belt job to solve the problem.


Lsmaclea

Passed Driver's Ed
Location
Allston MA
OP,

Not trying to create an argument, but I don't understand (maybe I can't visualize it well enough) how you can tell where the timing is by rotating the motor twice. Let me try to explain. Let's use this image:

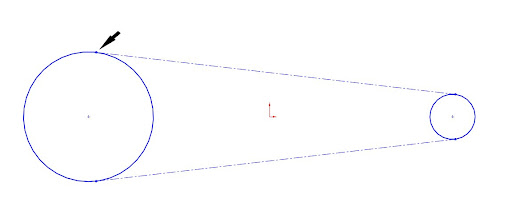

So, the big gear (circle) on the left is the cam shaft gear. And the small gear (circle) on the right is the crank shaft gear.

Assume the dot the arrow is pointing to is the mark you made on the timing belt. If you were to rotate the circle on the right 720 degrees, you would rotate the circle on the left less than 720 degrees. Therefore, if you turn the motor twice (crank shaft gear 720 degrees) the cam shaft gear is going to rotate less than 720 degrees. So, you won't get the timing marks to line up right again.

IMO, use a thorough marking system on the old belt while still on the motor, and then transfer the marks very carefully, then install the new belt lined up with the marks on the gears the first time.

Again, OP, AWESOME DIY. Super stoked this resource is out there for all of us to reference. :bow:


clockwise33

New York Giants Fanatic
Location
NJ
Yeah the coolant line that runs from the back of the engine to the front presses up against the cover. There have been a few on this site that have complained about rubbing noises, but I don't think it's worth taking everything off.

There's actually two different belt covers. One has a single piece cover and the other has a 2 piece cover. If you have a North American GTI, or any BPY engine code, you'll have the single piece cover. Removing it will necessitate the removal of the engine mount and engine bracket. Unless the sound is absolutely irritating, I'd probably wait until I was doing the timing belt job to solve the problem.
I can almost assure you that I have a two piece timing belt cover on my MY2006 North American BPY. There is a definite junction between the two pieces just below the coolant line, and there is no inspection window.


Zach L

VR junkie
Location
Austin, TX
OP,

Not trying to create an argument, but I don't understand (maybe I can't visualize it well enough) how you can tell where the timing is by rotating the motor twice. Let me try to explain. Let's use this image:

So, the big gear (circle) on the left is the cam shaft gear. And the small gear (circle) on the right is the crank shaft gear.

Assume the dot the arrow is pointing to is the mark you made on the timing belt. If you were to rotate the circle on the right 720 degrees, you would rotate the circle on the left less than 720 degrees. Therefore, if you turn the motor twice (crank shaft gear 720 degrees) the cam shaft gear is going to rotate less than 720 degrees. So, you won't get the timing marks to line up right again.

IMO, use a thorough marking system on the old belt while still on the motor, and then transfer the marks very carefully, then install the new belt lined up with the marks on the gears the first time.

Again, OP, AWESOME DIY. Super stoked this resource is out there for all of us to reference. :bow:
It all has to do the with ability of the belt to "stretch". As mentioned in my timing tips, it is possible to have the crankshaft and cam gears both aligned on the markings, with the belt being one tooth off in either direction. This is just one of the hassles of having a belt, which due to it's construction and materials, does NOT have a definite circumference; it stretches.

As for marking the belt, doing so would only assure you that the correct number of teeth were on each side of the "loop" once situated on the gears. On a side note, I did eventually mark my belt after my second attempt at timing the engine. I could tell from the 2 first attempts that I was a tooth off in the same direction on each attempt. Once again, this was because the belt needed to be extremely tight on the right side with all available slack on the left. Anyways, although belt marking aids in applying the belt, it will give you NO indication on the crank being in-line with the cam. The only marking to time the crank is on the crank pulley, which is removed early in the procedure and not put back on until after the timing procedure is done. That's why it's extremely important to mark the crankshaft gear to the block immediately after removing pulley. Marking the belt may help applying the belt, but if you've bumped the cam gear at anytime while the belt is removed you have a crank that is no longer in unison with the cam.

So to summarize, marking the belt is not necessary, but it may be helpful.:smile:

BTW, the only reason for rotating the crank 720 is because it rotates the cam 360, bring the only factory markings back in line to compare with your drawn markings.

I can almost assure you that I have a two piece timing belt cover on my MY2006 North American BPY. There is a definite junction between the two pieces just below the coolant line, and there is no inspection window.
Yeah the 2 piece cover does not have an inspection window because you just unscrew the 2 bolts near the top of the cover and take it off.


clockwise33

New York Giants Fanatic
Location
NJ
Yeah the 2 piece cover does not have an inspection window because you just unscrew the 2 bolts near the top of the cover and take it off.
So can you confirm that the coolant line has to be moved to pull the upper cover? When pulling the coolant line, will it be necessary to burp the system after reassembling.
