Old 04-18-2012, 05:37 PM   #1
cyphir
cyphir golf tdi1.9

Drives: Golf 1.9tdi mk5 105hp 55 plate
Join Date: Apr 2012
Location: derby
Posts: 14
Interior lights have Gone Off after replacing a bulb!!!

After replacing my interior boot light with an LED one all the interior lights went off and wont come on. i dont know what to do, ive only had the car for about 3 days :/. Anyone who could help?

cyphir is offline   Reply With Quote
Old 04-18-2012, 05:43 PM   #2
cyphir
cyphir golf tdi1.9

Drives: Golf 1.9tdi mk5 105hp 55 plate
Join Date: Apr 2012
Location: derby
Posts: 14
search this on ebay, cus there the ones i got
VW GOLF MK5 V INTERIOR LED Car Light Bulbs KIT WHITE 11 pieces
cyphir is offline   Reply With Quote
Old 04-19-2012, 05:56 AM   #3
JetTurbo
geezer

JetTurbo's Avatar

Drives: '12 Golf R
Join Date: Feb 2007
Location: Cincinnati, OH USA
Posts: 2,635
Arrow

Quote:
Originally Posted by cyphir View Post
After replacing my interior boot light with an LED one all the interior lights went off and wont come on. i dont know what to do, ive only had the car for about 3 days :/. Anyone who could help?

Very good chance you blew the fuse.
The trunk light, front map and dome lights, rear map and dome lights, visor vanity lights,
glove box light (if equipped) - all share one simple circuit.

On my US mk5 GTi, the interior lighting fuse is found in
Fuse box C (under left dash end cap) circuit #15
and is the only ATM 7.5 Amp fuse in that box.

__________________
2012 Golf R - 2008 Passat v6 4-mo - 2006 mk5 GTi 0-230k mi / 7 years SOLD
JetTurbo is offline   Reply With Quote
Old 04-19-2012, 06:20 AM   #4
Elliott
Formula 2 Driver

Elliott's Avatar

Drives: BMP 07 MT MKV GTI
Join Date: Jun 2008
Location: Scottish but live in Spain.
Posts: 5,799
this^ change out the 7.5 fuse and you should be good, check your full beam and fogs are working too as my friend did the same and he blew all three fuses.
__________________
"meh" build thread
.My job is alloy wheel refurbishment so if anyone has any questions, ask away.
Check out my Facebook work page WheelFixItSpain.com.
n show your support.
Elliott is offline   Reply With Quote
Old 04-19-2012, 09:02 AM   #5
JetTurbo
geezer

JetTurbo's Avatar

Drives: '12 Golf R
Join Date: Feb 2007
Location: Cincinnati, OH USA
Posts: 2,635
Post INTERIOR LED basics

BTW cyphir, it is unlikely the LED bulb you installed is an issue.
More likely you inadvertently shorted the hot circuit during an interior bulb install,
which would open that fuse.
To avoid that, pull the fuse before executing bulb swaps,
reinstall the fuse after the bulb is correctly in place.
Also, if any of your new LEDs do not light while the other interior bulbs do,
it is likely polarity, rotate the bulb 180 in its socket, and it will probably work.

No special error canceling bulbs are required for the interior light circuit,
which does not include footwell lights (if equipped).
Any bulb that fits will be ok for interior trunk light, front map and dome lights,
rear map and dome lights, visor vanity lights, and glove box light (if equipped).
That said, when changing to LEDs in all of the switched dome light branch of the circuit
(i.e. just the front and rear map and dome lights)
you may encounter a dim 'glow while off' on just the dome LEDs with those bulbs.
(key on, dome light rocker in the door switched / center position, doors closed).
No harm, just a bit of an annoying dim glow,
and if you want to get rid of it, one error canceling bulb
in any dome position will eliminate it.

Footwell lights do require some form of error canceling when swapping to LEDs,
either special error canceling LEDs
(regular LEDs draw too little current to satisfy the error monitoring)
or installing additional load (resistor) to the circuit.
__________________
2012 Golf R - 2008 Passat v6 4-mo - 2006 mk5 GTi 0-230k mi / 7 years SOLD
JetTurbo is offline   Reply With Quote
Old 04-21-2012, 04:19 PM   #6
cyphir
cyphir golf tdi1.9

Drives: Golf 1.9tdi mk5 105hp 55 plate
Join Date: Apr 2012
Location: derby
Posts: 14
ye thats some good information, where would i get error canceling LEDs from?
cyphir is offline   Reply With Quote
Old 04-23-2012, 08:14 AM   #7
JetTurbo
geezer

JetTurbo's Avatar

Drives: '12 Golf R
Join Date: Feb 2007
Location: Cincinnati, OH USA
Posts: 2,635
Arrow error canceling wedge bulb

Quote:
Originally Posted by cyphir View Post
ye thats some good information, where would i get error canceling LEDs from?
Not sure about sources your side of the pond.

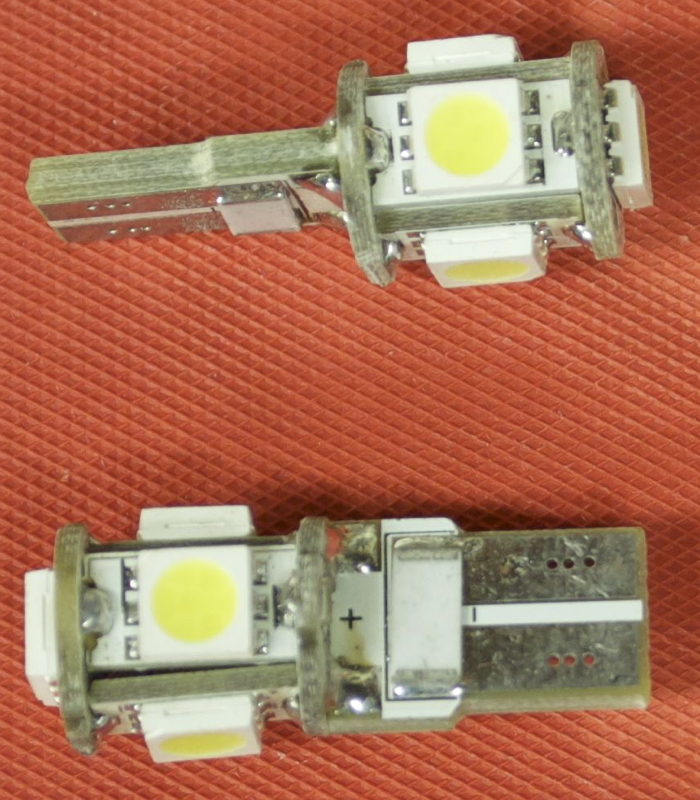

I have had very good results with

hidlightsusa.com - under the category BMW lights.
GP Thunder 194SMD-CAN-5W - USD $11.99/pair



They come in pairs, one is in my rear center dome to eliminate 'glow while off',
the other one is in my right footwell to keep that circuit's error monitoring happy.
My left footwell is a similar regular LED (not error canceling).
I also use them in my city lights, and they work great there too.
__________________
2012 Golf R - 2008 Passat v6 4-mo - 2006 mk5 GTi 0-230k mi / 7 years SOLD
JetTurbo is offline   Reply With Quote
Old 04-23-2012, 01:32 PM   #8
UGFast89
The Dubster Sith

UGFast89's Avatar

Drives: 2007 United Grey GTI
Join Date: Mar 2012
Location: Miami, Fl
Posts: 779
^^this guy always knows best about the electricle unit in mkvs.
__________________
UGFast89 is offline   Reply With Quote
Old 11-28-2012, 01:54 PM   #9
m3waj
Passed Driver's Ed

Drives: VW Golf GT 2.0 TDI
Join Date: Aug 2012
Location: West Yorkshire
Posts: 12
I had same problem was fixed by changing the fuse shown thanks alot.
m3waj is offline   Reply With Quote
Old 08-29-2013, 10:38 PM   #10
Roaldtm
Autocross Champion

Drives: 2006 GTI
Join Date: Feb 2013
Location: Phenix City, AL
Posts: 97
I have the same issue but when I replaced the fuse it blew off again. I checked all the new bulbs and all looked good. What else could be?
Roaldtm is offline   Reply With Quote
Old 08-31-2013, 05:16 PM   #11
Roaldtm
Autocross Champion

Drives: 2006 GTI
Join Date: Feb 2013
Location: Phenix City, AL
Posts: 97
Anyone? I got this LED's from ECS and they sent me a new set (which should get to me by Thursday) but in the meanwhile I'm running the car like this. Is it dangerous? Since every time I put a new fuse they get blown.
Roaldtm is offline   Reply With Quote
